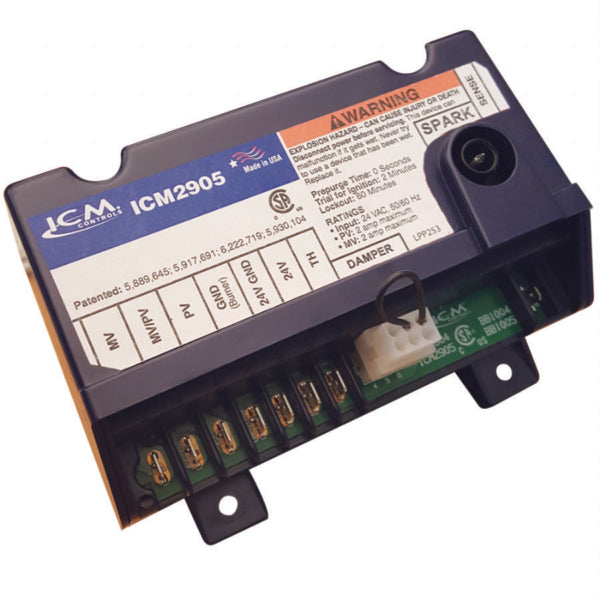

ICM ICM2905 Intermittant Pilot Ignition Control (Replaces Reznor 257010)

Availability:
In-Stock

Replaces: Reznor: 257010; UTEC: 1097-211

$103.06 USD

Title
Buy Now
SKU:
ICM2905
ID:
PH501-2S9-3173

PRODUCT INFO

*Intermittent pilot gas ignition control module*For use with intermittent pilot boilers, furnaces and other heating appliances*Microprocessor-based*Monitors timing, trial for ignition, flame sensing and lockout* Remote flame sensing*2 minute trial for ignition*60 minute lock out if pilot flame is not sensed in 2 minutes* Compatible with LP or natural gas* Damper control input

Features

  • Intermittent pilot gas ignition control module
  • For use with intermittent pilot boilers, furnaces and other heating appliances
  • Microprocessor-based
  • Monitors timing, trial for ignition, flame sensing and lockout
  • Remote flame sensing
  • 2 minute trial for ignition
  • 60 minute lock out if pilot flame is not sensed in 2 minutes
  • Compatible with LP or natural gas
  • Damper control input

Specifications

  • Control Voltage: 18-30 VAC
  • Frequency: 50/60 Hz
  • Humidity: 5%-95% R.H. (non-condensing) at +55°C
  • Operating Temperature: -40°F to 165°F, -40°C to 75°C
  • Pilot Valve: 2A @ 24 VAC
  • Main Gas Valve: 2A @ 24 VAC
  • Current Draw: 100 mA maximum
  • Pre-Purge Delay: 0 seconds
  • Trial for ignition: 2 minutes
  • Lock Out Time: 60 minutes

SPECIFICATIONS

General Information

Product Type
Intermittent Pilot Gas Ignition
Anticipator Setting
2A plus valve load @ 24 VAC
Ignition Type
Intermittent Pilot
Relative Humidity
5% to 95% R.H. (non condensing)
OEM
Reznor
Control Voltage
Line 24V (18-30 VAC) 50-60Hz
Pre-Purge Time
0 Seconds
Operating Temp Range
-40° to 165°F
Replaces
257010
