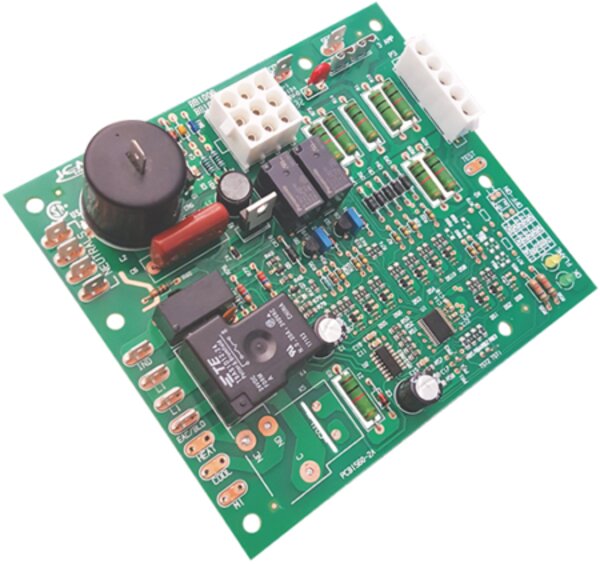

ICM ICM2907 Direct Spark Ignition Board (Replaces Reznor 195265)

Availability:
In-Stock

Replaces: Reznor: 195265; UTEC: 1097-210

$128.61 USD

Title
Buy Now
SKU:
ICM2907
ID:
PH501-2S9-3176

PRODUCT INFO

* Direct Spark Ignition (DSI) control board* Microprocessor-based* Controls inducer motor,blower motor,air cleaner (if equipped),spark igniter & gas valve* Monitors timing, trial for ignition, system switches, flame sensing and lockout* Compatible with LP or natural gas* LED indication for status and fault codes to aid in troubleshooting

Features

  • Direct Spark Ignition (DSI) control board
  • Microprocessor-based
  • Controls inducer motor, blower motor, air cleaner (if equipped), spark ignitor and the gas valve
  • Monitors timing, trial for ignition, system switches, flame sensing and lockout
  • Compatible with LP or natural gas
  • LED indication for status and fault codes to aid in troubleshooting

Specifications

  • Input - Voltage: 18-30 VAC Frequency: 60 Hz
  • Outputs - Inducer blower, Type: Relay, Rating: 1/6 HP @125 VAC
  • Outputs - Gas Valves, Type: Relay, Rating: 1A @ 24 VAC
  • Outputs - Blower, Type: Relay, Rating: 1/4 HP @125 VAC
  • Environmental - Operating Temperature: -40°F to 165°F (-40°C to 74°C)
  • Mechanical - Dimensions: 14.5” x 5”

SPECIFICATIONS

General Information

Product Type
Direct Spark Ignition
Replaces
195265
Operating Temp Range
-40° to 165°F
OEM
Reznor
