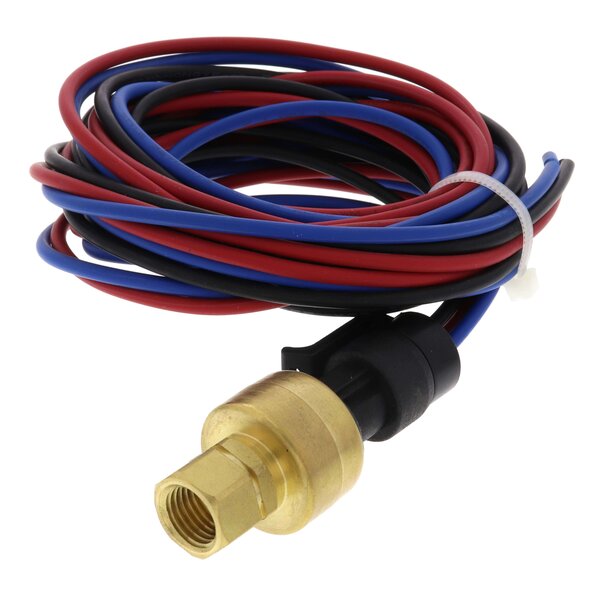

ICM ICM387 Pressure Transducer
ICM Controls ICM387 Pressure Transducer
$104.75 USD
SPECIFICATIONS
| General Information | |
| Product Type | Pressure Transducer |
| Pressure Range | 0 to 500 psi |
| Supply Voltage | 4.5 to 5.5 Vdc |
| Supply Current | 8 mA (max. @ 5.5 Vdc w/ no load) |
| Output Load | 10K ohms typical |
| Overvoltage Protection | 16 Vdc |
| Short Circuit Protected | Yes |
| Length | 72 inches |
| Operating Temp Range | -40°C to +135°C |
| Output Voltage | 0.5 to 4.5 Vdc typical |
| Output Current | 2.5 mA (max. sink or source) |
| Output Response Time | 10 ms |
| Reverse Voltage | 14 Vdc |
