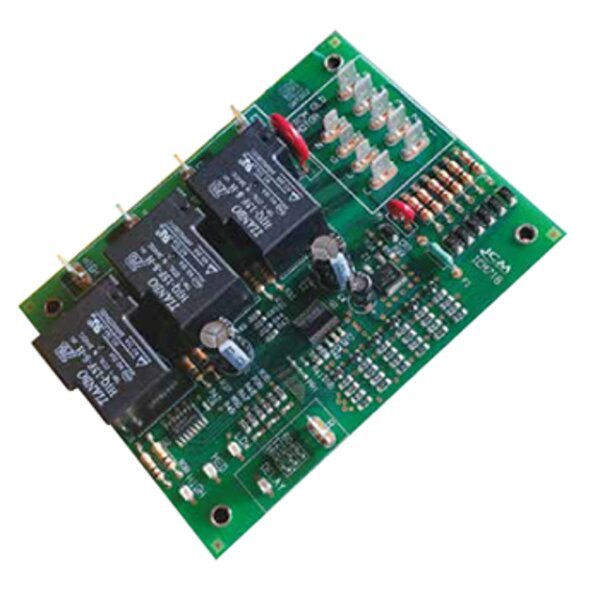

ICM ICM716 ECM to PSC Motor Controller

Availability:
In-Stock

Replaces: QwikSwapX3

$136.46 USD

Title
Buy Now
SKU:
ICM716
ID:
PH501-2S9-3180

PRODUCT INFO

The ICM716 allows a technician to change out an X13 or SelecTech constant torque ECM rated up to 1 HP with a single phase PSC motor and variable speed control board operating at an optional technician selected purge time. Allows an X13 or SelecTec constant torque ECM control to control a Single phase PSC motor Eliminates costly ECM repairs 3 High power relay outputs for automated speed selection 3 LED’s indicate selected speed LED indicator illuminates when off delay is active User selectable 60, 120, or 180 second off delay

Specifications:

  • Motor Voltage: 120 VAC or 208-240 VAC
  • Input Control Voltage: 24 VAC
  • Input Frequency: 50-60 Hz
  • Maximum Blower Horse Power: 1 HP
