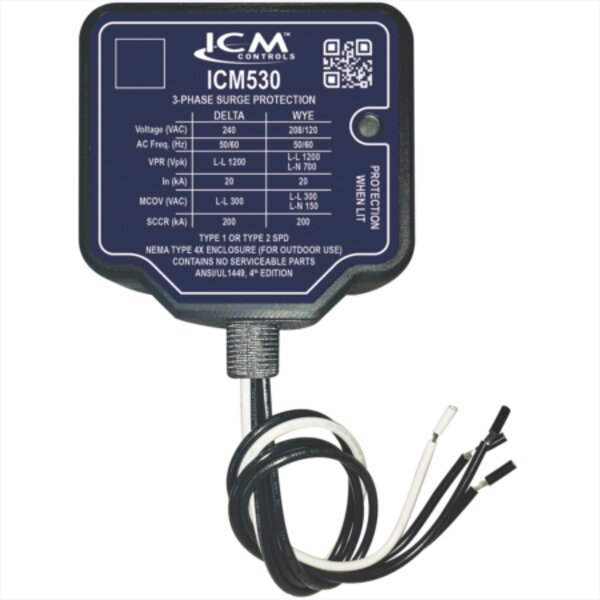

ICM ICM530 3-Phase Surge Protective Device for 240VAC (Delta) or 120/208VAC (Wye)

Availability:
In-Stock

Replaces: ABB: OVRHLDxx-120 ; ASCO: 420120Y, 420240D ; Eaton: SP1-208Y, SP1-240D, SP2-208Y, SP2-240D; ERICO (Critec): TDX50C120/208, TDX50C120/240D; Intermatic: AG2083C3, L5F13Y1DG1; Leviton: 55208-ASA; Siemens: TPS3D, TPS3C; Square D: SDSA2040, SDSA2040D

$157.46 USD

Title
Buy Now
SKU:
ICM530
ID:
PH501-2S9-3194

PRODUCT INFO

3-Phase Surge Protective Device for 240VAC (Delta) or 120/208VAC (Wye)

Product Features

  • Delta or Wye Configuration
  • NEMA Type 4X watertight plastic enclosure for outdoor and indoor installation
  • Green LED indicates surge protection present
  • Easily connects to electrical panel or disconnect for indoor and outdoor applications
  • UL Listed Type 1 or Type 2 SPD

SPECIFICATIONS

General Information

Service Voltage (3-Phase)
240 VAC Delta or 120/208 VAC Wye
Short Circuit Current Rating (SCCR)
200 kA
Nominal Discharge Current (In)
20 A
Maximum Surge Current
150,000 amps
Protection Mode
3 for Delta configuration
6 for Wye configuration (neutral tied to ground)
Maximum Continuous Operation Voltage (MCOV)
L-L: 300 VAC
L-N: (for Wye configuration only): 150 VAC
VPR
Delta L-L: 1200 VAC
Wye L-L: 1200 VAC
Wye L-N: 700 VAC
SPD Type
Type 1 (can also be used in Type 2 applications)
Surge Protection Technology
TFMOV
Input Power Frequency
50/60 Hz
WEIGHT/DIMENSIONS
4.30” x 4.10” x 2.30”
